Rockwell hardness testers and accessories

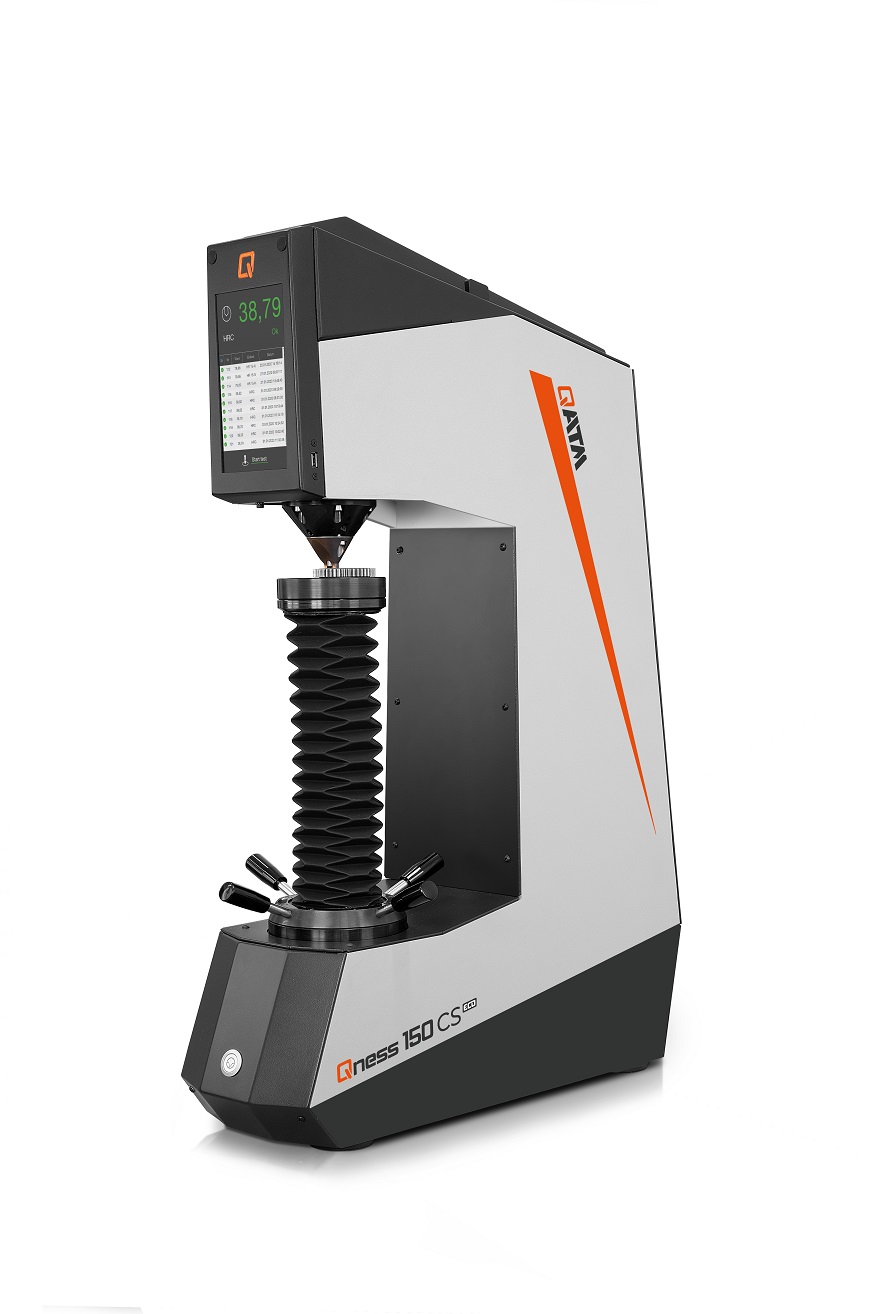

The Rockwell hardness tester QNESS 150 CS ECO convinces above all by high-quality components, a user-friendly software with many functions, as well as the electronic load application with closed control loop.

In addition to Rockwell hardness tests according to DIN EN ISO 6508 and ASTM E-18, it can also perform plastics tests according to DIN EN ISO 2039.

The proven concept with fixed test head and up-/down-moving spindle has been the standard for Rockwell hardness testers for many decades and is particularly suitable for small to medium-sized test pieces in almost all working environments.

1521-B1:/Icons/CTA_Go-to-product.jpg

1521-B1:/Diverses/Fokus_MessPruef/Qness-150-CS-ECO-01.jpg

PRODUCT ADVANTAGES

  • Large test force range (1 kg - 250 kg)
  • Direct Depth Measuring System (HEIDENHAIN)
  • Robust, welded steel frame
  • High-quality covers made of sheet steel
  • Integrated LED test room lighting
  • Capacitive 7" touch display

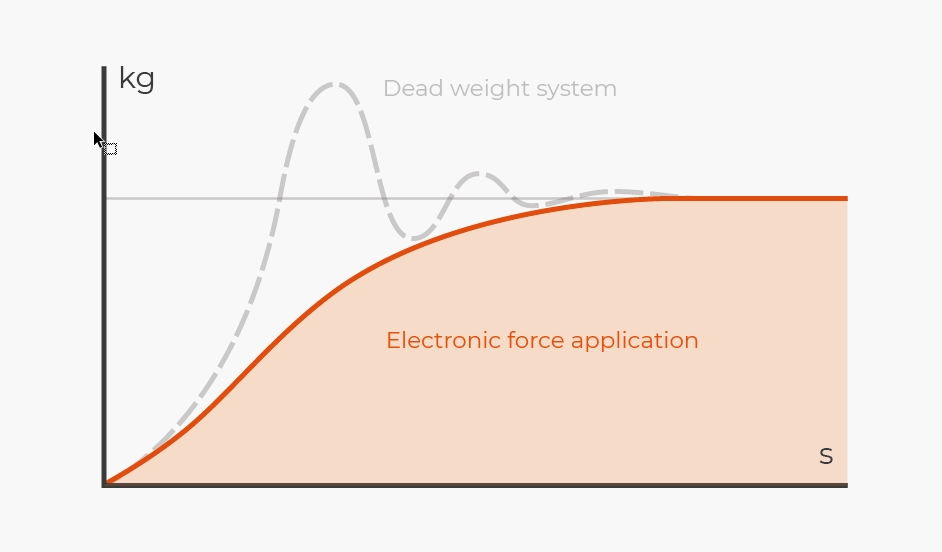

System comparison in relation to load application:

1521-B1:/Diverses/Fokus_MessPruef/Bild Lastaufbringung 150 CS ECO.jpg

Fully automatic test sequence with electronic load application and closed loop control.


1521-B1:/Diverses/Fokus_MessPruef/Bild Tabelle Verfahren zu 150 CS ECO.jpg



THE ROCKWELL HARDNESS TESTING QNESS 150 CS ECO



- WATCH NOW IN THE VIDEO -

Videos on

When you view and play embedded videos on https://www.hahn-kolb.de, the provider may be able to store your access and analyze your behavior. If you activate the content, i.e. agree to view and play it, a cookie is placed on your computer to record that you have agreed to this in your browser. This cookie does not store any personal data.

For more information, please see our privacy policy and cookie page.

You can also use this link to access the video directly on the plattform of the provider: https://youtu.be/yT_i_XpV0wQ


FURTHER PRODUCT ADVANTAGES

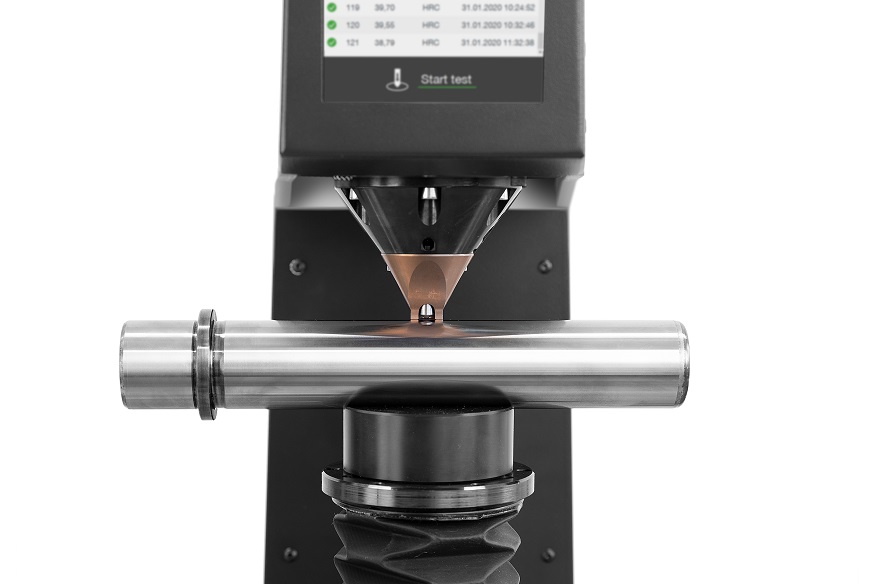

MAXIMUM PRECISION

1521-B1:/Diverses/Fokus_MessPruef/Qness-150-CS-ECO-06nn.jpg

The high-precision position measuring system from HEIDENHAIN lies exactly in the axis of the specimen. This eliminates measurement uncertainties, e.g. due to bending in the system. The penetration depth can thus be measured directly/absolutely and can even be calibrated easily according to the latest Rockwell standards.

COMFORTABLE START BUTTON

1521-B1:/Diverses/Fokus_MessPruef/42256010_PDA_2.jpg

In addition to the start button on the touch display, an uncomplicated and quick start of the hardness test is also possible with the start button on the front of the machine. This is very convenient, especially when wearing gloves.

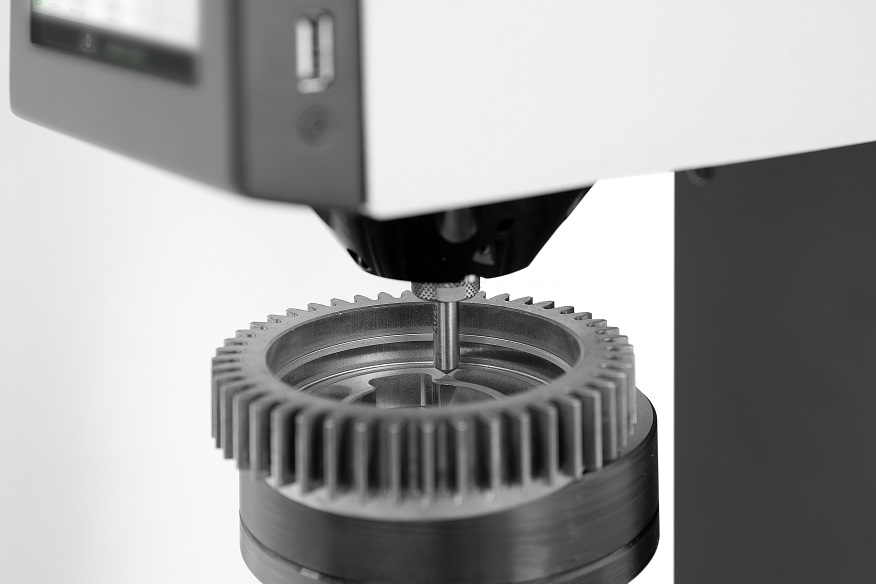

DETACHABLE DOWNHOLDER

1521-B1:/Diverses/Fokus_MessPruef/Qness-150-CS-ECO-08.jpg

Long set-up times for testing stations that are difficult to access are a thing of the past. The downholder can be removed with only 2 screws. This makes it easy to reach even test points close to interfering contours.

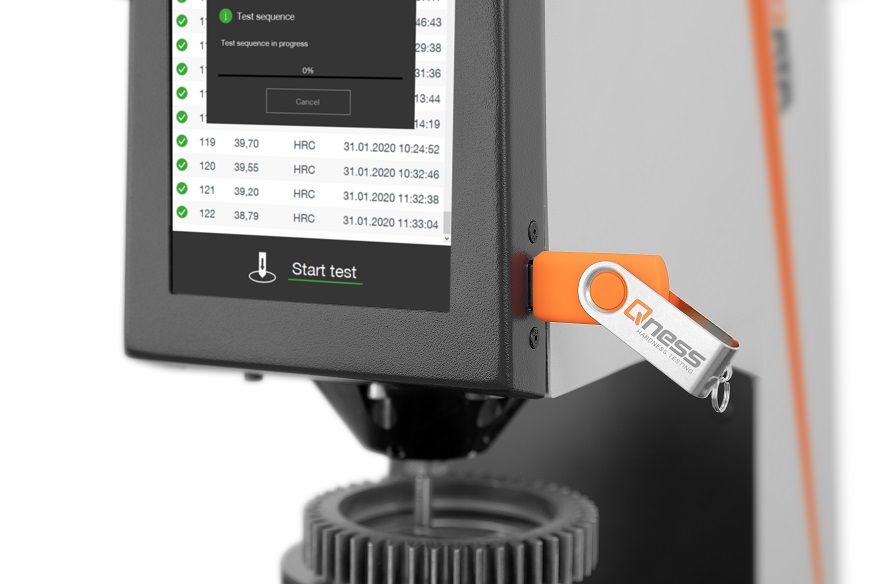

DIGITAL DATA OUTPUT

1521-B1:/Diverses/Fokus_MessPruef/Qness-150-CS-ECO-09.jpg

Test results can be output to data carriers with all the relevant information via the USB interface on the side. Ideally suited for e.g. the integration of test results into individually designed test reports in Microsoft EXCEL format.


OPERATING DISPLAY AND QPIX TE SOFTWARE

The 7" color display with capacitive touch technology reacts particularly quickly and sensitively. The new Qpix TE software guarantees easy operation with large buttons and intuitive, modern software interface.

1521-B1:/Diverses/Fokus_MessPruef/42256010_PDA_3.jpg

Display features:

  • Extra large and highly visible display of the test result

  • Good/bad-evaluation of the results in green and red according to the set tolerances

  • Check result list for 999 values

  • Statistics overview (min/max/range/cp/cpk/average value)

  • Revaluations according to DIN EN ISO 18265; DIN EN ISO 50150; ASTM E140

  • Surface corrections

  • Simple change of test methods

  • Various user languages

  • Password protected areas for advanced settings


FURTHER INFORMATION ABOUT THE ROCKWELL HARDNESS TESTER QNESS 150 CS ECO CAN BE FOUND IN THE PDF
