Monoblock milling tools for stainless steel machining

High-performance milling cutters for stainless steels and special alloys

The ATORN generation of milling cutters is characterized by excellent properties when machining stainless steels and special alloys such as nickel, cobalt or titanium alloys. An ultra-fine grain carbide in combination with high-performance geometry and specially developed ULTRA MS coating makes these tools absolutely process-safe, wear-resistant and enables a high metal removal rate.

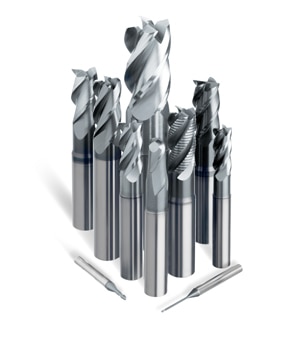

1521-B1:/Diverses/Fokus_Edelstahl/Edelstahl_Fraesen/Grafiken_Ausigelung-08.jpg
  • Reduced vibrations: Unequal twist and unequal pitch reduce vibrations during machining
  • High precision: High-precision edge radii with a tolerance of less than 0.01 mm ensure precise components
  • High running smoothness: Perfectly matched to the conditions in VA and special alloys: positive cutting edge geometries ensure soft cutting and high running smoothness
  • High temperature resistance: The special ULTRA MS coating can withstand application temperatures of up to 1,100 °C and thus significantly increases tool life
  • Highest surface quality: The multitude of special features are the guarantee for highest surface quality beyond chatter marks
Popular products from category Monoblock milling tools for stainless steel machining
ATORN Solid carbide mini end mill
ATORN Solid carbide mini end mill

2 cutting edges, ULTRA MS-coated

1 product

To the products
ATORN Solid carbide HPC end mill
ATORN Solid carbide HPC end mill

4 cutting edges, ULTRA MS-coated

1 product

To the products
ATORN SC roughing cutter
ATORN SC roughing cutter

4 cutters, ULTRA MS-coated

1 product

To the products
ATORN Solid carbide end mill
ATORN Solid carbide end mill

3 cutting edges, ULTRA MS-coated

1 product

To the products
ATORN solid carbide HPC end mill "trochoidal" - STAINLESS STEEL
ATORN solid carbide HPC end mill "trochoidal" - STAINLESS STEEL

4 cutters, ULTRA M-coated, 4xD design

1 product

To the products
ATORN Solid carbide HPC end mill
ATORN Solid carbide HPC end mill

4 cutting edges, ULTRA MS-coated

1 product

To the products

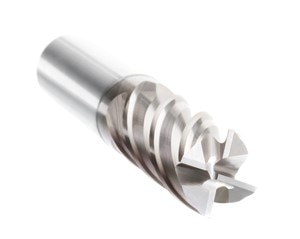

1521-B1:/Diverses/Fokus_Edelstahl/Edelstahl_Fraesen/Grafiken_Ausigelung-09_3.jpg

HPC Power end mill stainless steel

  • Shank design: HA and HB available in h6 tolerance
  • Coating: Wear and temperature resistant ULTRA M coating
  • Clearance: For greater depth of cut
  • High running smoothness: Low-vibration milling due to different helix angles (41°/44°)
  • Cutting edge treatment: Defined cutting edge rounding minimizes micro-fractures on the cutting edge and increases tool life
  • Maximum process reliability

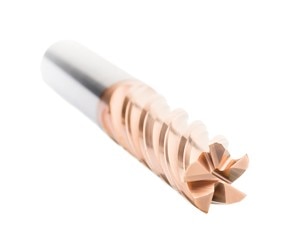

1521-B1:/Diverses/Fokus_Edelstahl/Edelstahl_Fraesen/Grafiken_Ausigelung-10_2.jpg

TVC end mills extra long

  • High insert depths: The tools are available in 3xD, 4xD and 5xD cutting edge lengths
  • Cutting edge treatment: Defined cutting edge rounding minimizes micro fractures on the cutting edge and increases tool life
  • Coating: Wear-resistant and temperature-resistant ULTRA M coating
  • High running smoothness: Low-vibration milling due to different helix angles (41°/44°)
  • Chipbreaker geometry: Produces short chips and thus optimizes chip removal
  • Maximum metal removal rate
