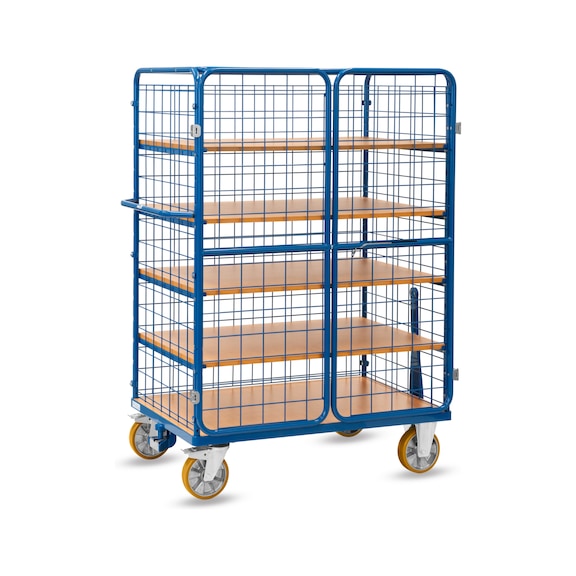

FETRA Shelf trolley with 5 levels, load capacity 600 kg, loading surface 1200 x 800 mm, with tugger train

Application

For the safe transport and storage of materials and goods.

Execution

• Modular system, welded steel tube and profile steel, powder coated
• Front walls and one longitudinal wall closed with wire grid, 100 x 100 x 5 mm
• With a double-hinged door, steel tubular frame with welded-in wire grid, 100 x 100 x 5 mm
• Bolt locking mechanism integrated into the tubular frame, can be locked using a padlock (not included)
• Door leaves foldable against the end panels. With wire mesh roof
• 1 fixed and 4 removable shelves made of engineered wood board, beech-effect finish
• Shelves can be positioned as required, in 100 mm increments. Carrying capacity per shelf 90 kg
• 2 swivel and 2 fixed castors, suitable for tugger trains. Wheels with polyurethane tyres on aluminium rims, hubs with precision ball bearings. Brakes on the swivel castors.
• The coupling system ensures optimum tracking stability
• Self-locking flat steel drawbar on the fixed-castor side. Drawbar eye Ø 26.5 mm. Convenient foot operation. Automatically returns to the vertical rest position by means of a gas strut. On the swivel castor side there is a strong coupling pin Ø 25 mm with guide jaws and automatic safety lock

Notes

Tugger with front steering and tugger-train drawbar required! Max. 5 trolleys per train. Max. speed 6 km/h. Max. towing weight 3000 kg.
