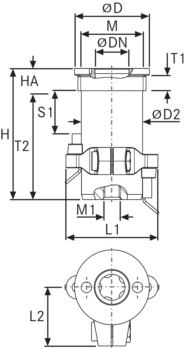

Application

Zero-point clamping system for automation solutions, for clamping with optimised setup time for machining and chipless machining.

Execution

• Pneumatic opening.
• Operating pressure for opening: min. 6 bar to max. 14 bar.
• Hardened cover and piston.
• Housing: aluminium.
• Repeat accuracy less than 0.02 mm.

Notes

The installation clamping module has high retention, pull-in and locking forces. It is opened pneumatically (1) and locked mechanically by spring force. The pressure lines can then be disconnected as desired (module is clamped pressure-free). The clamping module has one connection: 1 = pneumatic opening. The installation clamping module with sensor detection includes a mounting kit, order no. 559403. The kit contains two Reed sensors with connection lines (dia. 0.75 mm, cable length 100 mm) for controlling the open/locked status and one mounting clamp. To facilitate installation of the installation clamping module, we recommend the AMF face wrench, order no. 50914. * Please follow the installation instructions.
