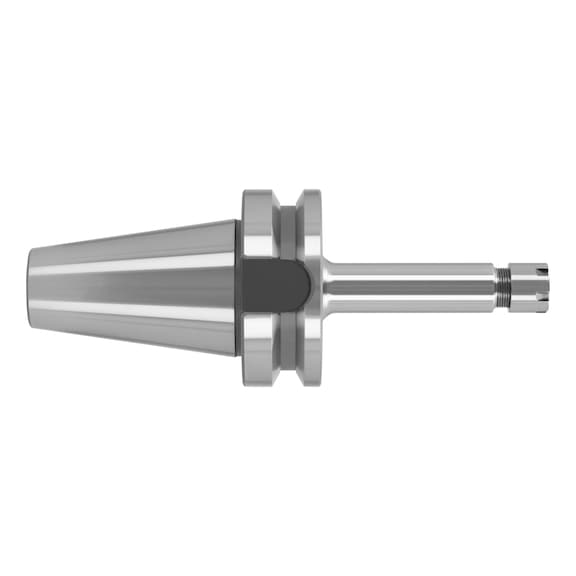

ATORN ER collet chuck with miniature nut
In accordance with ISO 7388-2 (JIS B6339/MAS-BT); slim version
You need more information or have not found your desired product?
Products
You need more information or have not found your desired product?
Call customer service: +49 (0) 7141 498-4848
Application
For clamping tools with a straight shank in ER collets in accordance with DIN 6499.
Execution
- Alloyed case-hardening steel, core tensile strength at least 950 N/mm²
- Case-hardened HRc 60 ± 2 (HV 700 ± 50), hardness depth 0.8 mm ± 0.2 mm
- Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
- Max. concentricity < 0.005 mm
- Functional surfaces precision-ground, all other surfaces black-oxide
- With Balluff chip hole
Notes
The previous standard JIS B 6339 MAS BT was superseded by ISO 7388-2.
Delivery
1x BT40 or BT50 ER miniature collet chuck (ISO 7388-2)
